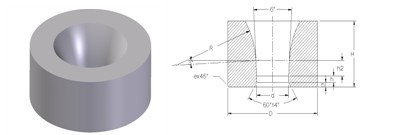

Type E wire dies
Type E wire dies
Product name : Type E wire dies
Item :
Details :
Type
Dimensions

Referecnce Dimensions

D
d
H
h1
h
Α
Β
R
e
 E25-5.7
25
5.7
20
3.0
2.0
240
600
3
1.2
E25-6.7
25
6.7
20
3.0
2.0
240
600
3
1.2

E25-7.0
25
7.0
20
3.0
2.0
240
600
3
1.2
E25-8.0
25
8.0
20
3.0
2.0
240
600
3
1.2
E25-7.7
25
7.7
20
3.0
2.0
240
600
3
1.2
E30-7.7
30
7.7
24
3.5
2.1
240
600
4
1.2
E30-9.0
30
9.0
24
3.5
2.1
240
600
4
1.2
E30-10
30
10.0
24
3.5
2.1
240
600
4
1.2
E30-11
30
11.0
24
3.5
2.1
240
600
4
1.2
E35-9.0
35
9.0
24
3.5
2.1
240
600
4
1.5
 E35-10
35
10.0
24
3.5
2.1
240
600
4
1.5
 E35-11
35
11.0
24
3.5
2.1
240
600
4
1.5
 E35-13
35
13.0
24
3.5
2.1
240
600
4
1.5
E35-14
35
14.0
24
3.5
2.1
240
600
4
1.5
E35-16
35
16.0
24
3.5
2.1
240
600
4
1.5
E35-18
35
18.0
24
3.5
2.1
240
600
4
1.5
E40-12
40
12.0
24
3.5
2.1
240
600
4
1.5
E40-16
40
16.0
24
3.5
2.1
240
600
4
1.5
E40-19
40
19.0
24
3.5
2.1
240
600
4
1.5
E45-16
45
16.0
25
4.0
2.6
240
600
5
1.5
E45-18
45
18.0
25
4.0
2.6
240
600
5
1.5
E45-20
45
20.0
25
4.0
2.6
240
600
5
1.5
E50-18
50
18.0
25
4.0
2.6
240
600
5
2.0
E55-20
55
20.0
27
4.5
3.2
240
600
6
2.0
E60-20
60
20.0
27
4.5
3.2
240
600
6
2.0
E60-22
60
22.0
27
4.5
3.2
240
600
6
2.0
E60-25
60
25.0
27
4.5
3.2
240
600
6
2.0
E65-20
65
20.0
27
4.5
3.2
240
600
6
2.5
E65-25
65
25.0
27
4.5
3.2
240
600
6
2.5
E65-28
65
28.0
27
4.5
3.2
240
600
6
2.5
E65-30
65
30.0
27
4.5
3.2
240
600
6
2.5
E70-32
70
32.0
30
5.5
4.0
240
600
6
2.5
E70-35
70
35.0
30
5.5
4.0
240
600
6
2.5
E75-32
75
32.0
30
5.5
4.0
240
600
6
2.5
E75-35
75
35.0
30
5.5
4.0
240
600
6
2.5
E80-40
80
40.0
30
5.5
4.0
240
600
6
2.5
E85-40
85
40.0
33
6.0
4.5
240
600
7
2.5
E90-40
90
40.0
33
6.5
5.0
240
600
7
2.5
E95-42
95
42.0
33
6.5
5.0
240
600
7
2.5
E100-45
100
45.0
33
7.0
5.5
240
600
7
2.5
