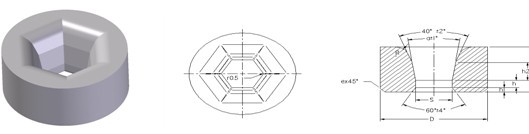

Type S60 Drawing Dies
Type S60 Drawing Dies
Product name : Type S60 Drawing Dies
Item :
Details :

Type
Dimension(mm)
Reference dimension(mm)
D
H
s
2α
2β
2γ
h
h1
h2
R
e
S60-2.5
30
21
2.5
14°
40°
60°
1.5
2.0
10.0
3.0
1.2
S60-3.0
30
21
3.0
14°
40°
60°
1.5
2.0
10.0
3.0
1.2
S60-4.0
30
21
4.0
14°
40°
60°
1.5
2.0
10.0
3.0
1.2
S60-4.7
30
21
4.7
14°
40°
60°
2.0
2.0
10.5
3.0
1.2
S60-5.7
30
21
5.7
14°
40°
60°
2.0
2.0
10.5
3.0
1.2
S60-6.7
30
21
6.7
14°
40°
60°
2.0
2.0
10.5
3.0
1.2
S60-7.7
30
21
7.7
14°
40°
60°
2.0
2.0
10.5
3.0
1.2
S60-8.6
35
21
8.6
14°
40°
60°
3.0
3.0
11.0
3.0
1.2
S60-9.6
35
21
9.6
14°
40°
60°
3.0
3.0
11.0
3.0
1.2
S60-10
35
21
10.6
14°
40°
60°
3.0
3.0
11.0
3.0
1.2
S60-11
40
25
11.5
14°
40°
60°
3.5
3.0
12.5
4.0
1.5
S60-12
40
25
12.5
14°
40°
60°
3.5
3.0
12.5
4.0
1.5
S60-13
45
25
13.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-14
45
25
14.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-15
45
25
15.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-16
45
25
16.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-17
45
25
17.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-18
45
25
18.5
14°
40°
60°
4.0
3.0
13.0
4.0
1.5
S60-19
55
28
19.5
14°
40°
60°
5.0
4.0
14.0
5.0
1.5
S60-20
55
28
20.5
14°
40°
60°
5.0
4.0
14.0
5.0
1.5
S60-21
55
28
21.5
14°
40°
60°
5.0
4.0
14.0
5.0
1.5
S60-22
55
28
22.5
14°
40°
60°
5.0
4.0
14.0
5.0
1.5
S60-23
55
28
23.5
14°
40°
60°
5.0
4.0
14.0
5.0
1.5
S60-24
65
30
24.5
16°
40°
60°
6.0
4.5
14.0
5.0
1.5
S60-25
65
30
25.5
16°
40°
60°
6.0
4.5
14.0
5.0
1.5
S60-26
65
30
26.5
16°
40°
60°
6.0
4.5
14.0
5.0
1.5
S60-27
65
30
27.5
16°
40°
60°
6.0
4.5
14.0
5.0
1.5
S60-28
65
30
28.5
16°
40°
60°
6.0
4.5
14.0
5.0
1.5
S60-29
75
35
29.5
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-30
75
35
30.5
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-31
75
35
31.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-32
75
35
32.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-33
75
35
33.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-34
75
35
34.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-35
75
35
35.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-36
75
35
36.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-37
75
35
37.3
16°
40°
60°
7.0
5.0
15.0
6.0
1.5
S60-38
90
35
38.3
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-39
90
35
39.3
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-41
90
35
41.0
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-42
90
35
42.0
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-44
90
35
44.0
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-47
90
35
47.0
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-49
90
35
49.0
16°
40°
60°
7.0
5.0
15.0
6.0
2.0
S60-52
100
40
52.0
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-54
100
40
54.0
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-57
100
40
57.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-59
120
42
59.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-61
120
42
61.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-54
120
42
64.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-67
120
42
67.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-70
120
42
70.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
S60-74
120
42
74.5
16°
40°
60°
8.0
6.0
15.0
6.0
2.0
