Tungsten Carbide Cutting Disc

Product name : Tungsten Carbide Cutting Disc

Item :

Details :

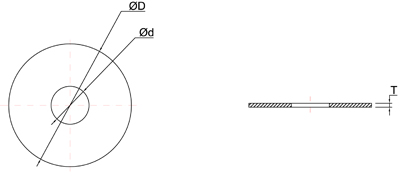

Code	D (mm)	Tol (mm)	d (mm)	Tol (mm)	T (mm)	Tol (mm)	Flatness (mm)
CD02800603	28	+0.5/0	6.0	+0/-0.5	0.3	+/-0.1	≦0.2
CD03001002	30	+0.5/0	10.0	+0/-0.5	0.2	+/-0.1	≦0.2
CD03500810	35	+0.5/-1.5	8.0	+0.5/-0.5	1.0	+0.2/-0.1	≦0.25
CD04000610	40	+0.5/-1.5	6.0	+0.5/-0.5	1.0	+0.2/-0.1	≦0.25
CD04500802	45	+0.5/-1.5	8.0	+0.5/-0.5	0.2	+0.2/-0.1	≦0.25
CD06001620	60	+0.5/-1.5	16.0	+0.5/-0.5	2.0	+0.2/-0.1	≦0.25
CD09002512	90	+0.5/-1.5	25.0	+0.5/-0.5	1.2	+0.2/-0.1	≦0.25
CD10006507	100	+0.5/-1.5	65	+0.5/-0.5	0.7	+0.2/-0.1	≦0.25
CD10003015	100	+0.5/-1.5	30	+0.5/-0.5	1.5	+0.2/-0.1	≦0.25
CD10006520	100	+0.5/-1.5	65	+0.5/-0.5	2.0	+0.2/-0.1	≦0.25
CD10501503	105	+0.5/-1.5	15	+0.5/-0.5	0.3	+0.2/-0.1	≦0.25
CD10601503	106	+0.5/-1.5	15	+0.5/-0.5	0.3	+0.2/-0.1	≦0.25
CD15007050	150	+1.0/-1.5	70	+0.5/-1.0	5.0	+/-0.2	≦0.30
CD18007050	180	+1.0/-1.5	70	+0.5/-1.0	5.0	+/-0.2	≦0.30
CD19005115	190	+1.0/-1.5	51	+0.5/-1.0	1.5	+/-0.2	≦0.30
CD20012214	200	+1.0/-1.5	122	+0.5/-1.0	1.4	+/-0.2	≦0.35
CD21011014	210	+2.0/-1.5	110	+0.5/-1.5	1.4	+/-0.3	≦0.35
CD22511014	225	+2.0/-1.5	110	+0.5/-1.5	1.4	+/-0.3	≦0.35
CD23013014	230	+2.0/-1.5	130	+0.5/-1.5	1.4	+/-0.3	≦0.35
CD24003212	240	+2.0/-1.5	32	+0.5/-1.5	1.2	+/-0.3	≦0.35
CD25010516	250	+5.0/-2.0	150	+1.0/-3.0	1.6	+/-0.5	≦0.40
CD25014015	250	+5.0/-2.0	140	+1.0/-3.0	1.5	+/-0.5	≦0.40
CD25015016	250	+5.0/-2.0	150	+1.0/-3.0	1.6	+/-0.5	≦0.40
CD26011216	260	+5.0/-2.0	112	+1.0/-3.0	1.6	+/-0.5	≦0.40
CD26011417	260	+5.0/-2.0	114	+1.0/-3.0	1.7	+/-0.5	≦0.40
CD26014015	260	+5.0/-2.0	140	+1.0/-3.0	1.5	+/-0.5	≦0.40
CD26015816	260	+5.0/-2.0	158	+1.0/-3.0	1.6	+/-0.5	≦0.40
CD26016017	260	+5.0/-2.0	160	+1.0/-3.0	1.7	+/-0.5	≦0.40
CD26017018	260	+5.0/-2.0	170	+1.0/-3.0	1.8	+/-0.5	≦0.40
CD26516818	265	+5.0/-2.0	168	+1.0/-3.0	1.8	+/-0.5	≦0.40

*Other sizes are available as per customers' requirements
