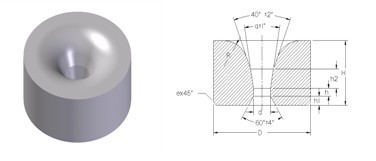

Type S12 wire dies
Type S12 wire dies
Product name : Type S12 wire dies
Item :
Details :
Type
Dimensions (mm)
Reference Dimensions(mm)
D
H
d
2α
2γ
h
h1
R
e
S12-00806
8
6
0.4~0.8
16°
60°
0.3~0.4
1.0
2.5
0.6
S12-01308
13
8
0.4~0.8
16°
60°
0.3~0.8
1.2
3.0
1.0
S12-01610
16
10
0.8~2.0
18°
60°
0.8~1.2
1.6
4.0
1.0
S12-02012
20
12
2.3~4.0
20°
60°
0.8~1.4
1.6~2.0
4.0
1.0
S12-02214
22
14
4.2~5.7
22°
60°
1.4~2.3
2.0
4.0
1.0
S12-02216
22
16
6.4~8.0
22°
60°
2.0~2.3
2.0
4.5
1.0
S12-02616
26
16
6.4~8.0
22°
60°
2.0
3.5
3.5
1.0
