Type S13 wire dies
Type S13 wire dies

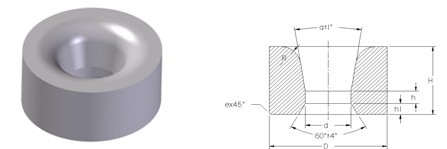

Product name : Type S13 wire dies
Item :
Details :

Type
Dimension(mm)
Reference dimension(mm)
D
H
d
2α
2γ
h
h1
R
e
S13-02818
28
18
5.7~7.3
20°
60°
2.5
3.0
9.0
1.2
S13-02820
28
20
4.7~9.9
20°
60°
2.5~4.5
2.5~3.0
7.0~10.0
1.2
S13-03021
30
21
5.4~10.1
20°
60°
3.5~4.0
2.5~3.5
7.0
1.2~1.5
S13-03524
35
24
6.7~12.5
20°
60°
5.0
4.0
7.0~14.0
1.5
S13-03824
38
24
10.5~15.5
21°~23°
60°
4.0~5.0
3.5~4.0
7.0~14.0
1.5
S13-04025
40
25
10.0~15.5
20°
60°
5.0
4.0
7.0
1.5
S13-04827
48
27
16.5~24.5
20°~23°
60°
5.0~6.0
4.5
7.0~14.0
15
S13-04927
49
27
21.5~23.5
23°
60°
6.0
4.0
14
15
S13-05028
50
28
16.5~24.5
20°
60°
6.0~7.0
4.5
7.0
1.5
S13-06032
60
32
25.5~34.5
21°
60°
7.0~7.5
5.0
14
1.5
S13-06035
60
35
25.5~34.5
20°
60°
7.0~7.5
6.0
8
1.5
S13-07535
75
35
35.5~43.5
20°
60°
8.0
6.0
8.0
1.5
S13-08035
80
35
43.5
20°
60°
7.0
5.5
8.0
1.5
S13-09035
90
35
45~58
20°
60°
9.0~10.0
6.0
8.0
1.5~2.0
S13-09535
95
35
53~57
20°
60°
8.5
6.0
8.0
1.5
S13-11040
110
40
53~69
20°
60°
9.0~11.0
6.0
8.0
2.0
S13-12045
120
45
65
20°
60°
11.0
6.0
8.0
2.0
S13-14050
140
50
71~84
20°
60°
12.0
6.0
8.0
2.0
