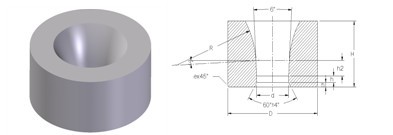

Type S20 wire dies
Type S20 wire dies
Product name : Type S20 wire dies
Item :
Details :

Type
Dimension(mm)

Reference dimension(mm)
D
H
d
2α
2γ
h
h1
e
S20-01614
16
14
2.0~3.0
10°
60°
1.0~1.5
1.5
1.0
S20-02218
22
18
4.0
10°
60°
2.0
1.5
1.0
S20-03022
30
22
5.0~8.0
10°
60°
3.0
2.0
1.2
S20-03525
35
25
9.0~11.0
10°
60°
3.0
2.0
1.2
S20-04028
40
28
12.0~14.0
10°
60°
3.0
2.0
1.5
S20-04530
45
30
15.0~17.0
10°
60°
3.0
1.5
1.5
S20-05032
50
32
18.0~25.0
10°
60°
4.0
2.5
1.5
S20-05532
55
32
26.0~28.0
10°
60°
4.0
2.5
1.5
S20-06034
60
34
29.0~31.0
10°
60°
4.0
2.5
1.5
S20-06536
65
36
33.0~35.0
10°
60°
4.0
2.5
1.5
S20-07542
75
42
37.0~39.0
10°
60°
5.0
3.0
1.5
S20-08545
85
45
40.0~45.0
10°
60°
5.0
3.0
1.5
S20-09548
95
48
41.0~45.0
10°
60°
5.0
3.0
1.5
S20-10052
100
52
48.0~51.0
10°
60°
7.0
4.0
1.5
S20-11052
110
52
56.0~60.0
10°
60°
7.0
4.0
1.5
